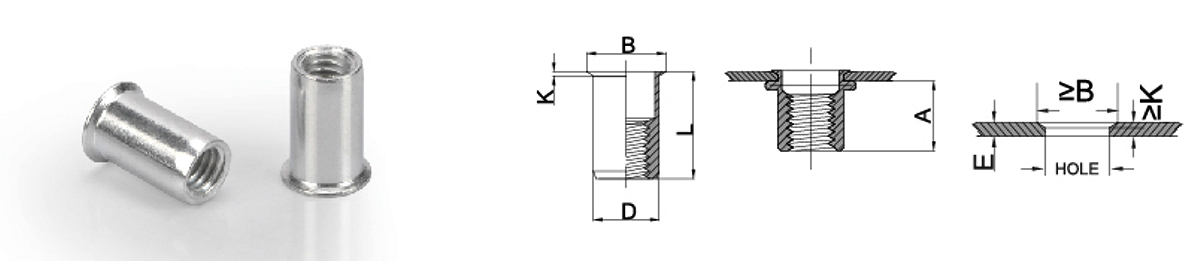

Reduce Head Plain Body Aluminum

0
View: 2,077

Details:



UNIT:mm

F=Flat/P=Plain body/Al=Aluminium

Thread

Number
P/N

T(GRIP RANGE)
MIN MAX

A
Ref

Hole Size
+0.1
0

D
+0.07
-0.1

B
土 0.30

K
土0.15

L
土 0.30

M4

RPAL-04M-15

0.5-1.5

6.8

6.0

5.9

7.0

0.5

10.0

M5

RPAL-05M-25

0.5-2.5

7.5

7.0

6.9

8.0

0.6

12.0

M6

RPAL-06M-30

0.5-3.0

9.0

9.0

8.9

10.0

0.6

14.5

M8

RPAL-08M-35

1.0-3.5

10.2

11.0

10.9

12.0

0.6

16.5

M10

RPAL-10M-35

1.0-3.5

11.2

13.0

12.9

14.5

0.9

19.0
