Flat Head Knurled Body Stainless Steel 2

1+
View: 2,182

Details:

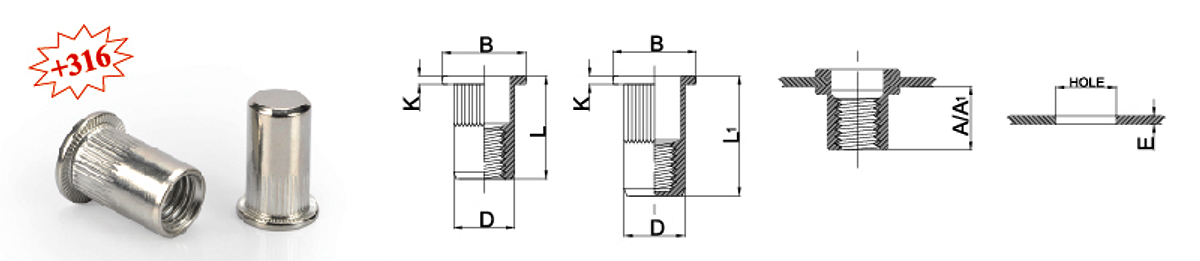

UNIT:mm F=Flat/K=Knurled/A2=Stainless steel/B=Blind
Thread Number
P/N
T(GRIP RANGE)
MIN MAX
A
Ref
Hole Size
+0.1
0
D
+0.07
-0.1
B
土 0.30
K
土0.15
L
土 0.30
(CLOSE END)
A1 L1
M4 FKA2-04M-20 0.5-2.0 6.0  6.0  5.9  9.0  0.8  10.5  12.5  16.0
M5 FKA2-05M-25 0.5-2.5 8.0  7.0  6.9  10.0  1.0  13.0  13.0  17.0
M6 FKA2-06M-30 0.5-3.0 9.5  9.0  8.9  12.3  1.3  15.5  13.5  19.2
M8 FKA2-08M-35 1.0-3.5 11.5  11.0  10.9  14.5  1.5  18.5  15.0  21.5
M10 FKA2-10M-40 1.0-4.0 24.0  13.0  12.9  17.0  1.6  21.5  19.2  27.0
All close end pants number add "B",AS:FKA2-04M-20B
