Reduce Head Knurled Body Stainless Steel 2

0
View: 2,155

Details:

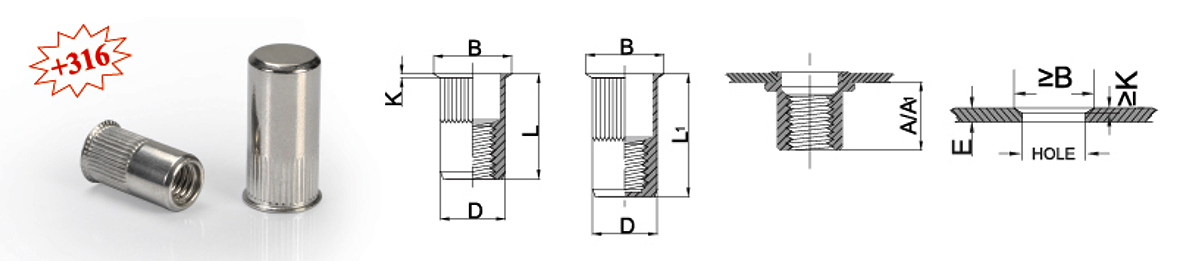

UNIT:mm R=Reduce/P=Plain R=Reduce/K=Knurled/A2=Stainless steel/B=Blind
Thread Number
P/N
T(GRIP RANGE)
MIN MAX
A
Ref
Hole Size
+0.1
0
D
+0.07
-0.1
B
土 0.30
K
土0.15
L
土 0.30
(CLOSE END)
A1 L1
M4 RKA2-04M-20 0.5-2.0 6.8  6.0  5.9  7.0  0.5  10.5  11.3  15.0
M5 RKA2-05M-20 0.5-2.0 7.5  7.0  6.9  8.0  0.5  11.5  12.5  16.5
M6 RKA2-06M-25 0.5-2.5 9.0  9.0  8.9  10.0  0.6  14.0  15.5  20.5
M8 RKA2-08M-30 0.5-3.0 10.2  11.0  10.9  12.0  0.7  16.5  17.0  23.0
M10 RKA2-10M-35 1.0-3.5 11.5  13.0  12.9  14.0  0.7  17.7  18.3  24.5
All close end pants number add "B",AS:RKA2-04M-20B
