Flat Head Plain Body Stainless Steel

0
View: 1,407

Details:

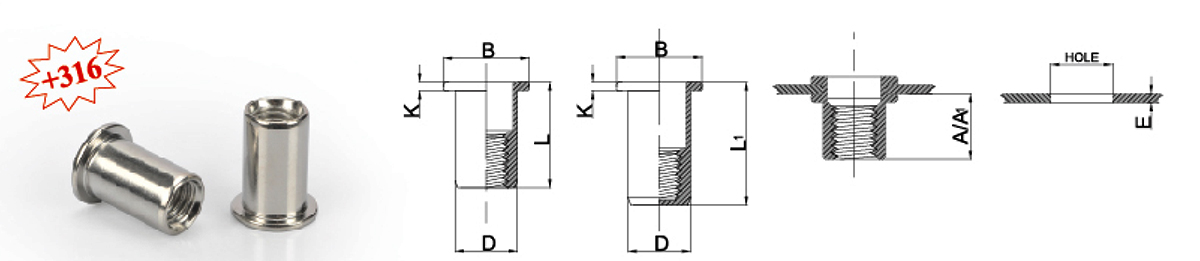

UNIT:mm F=Flat/P=Plain body/A2=Stainless steel/B=Blind
Thread Number
P/N
T(GRIP RANGE)
MIN MAX
A
Ref
Hole Size
+0.1
0
D
+0.07
-0.1
B
土 0.30
K
土0.15
L
土 0.30
(CLOSE END)
A1 L1
M4 FPA2-04M-20B 0.5-2.0 6.8  6.0  5.9  8.5  0.8  10.5  11.3  16.0
M5 FPA2-05M-25B 0.5-2.5 8.7  7.0  6.9  10.0  1.0  13.0  13.8  19.0
M6 FPA2-06M-30B 0.5-3.0 9.8  9.0  8.9  12.3  1.3  15.5  15.0  21.0
M8 FPA2-08M-35B 1.0-3.5 10.8  11.0  10.9  15.0  1.5  18.2  18.2  25.0
M10 FPA2-10M-40B 1.0-4.0 13.7  13.0  12.9  17.0  1.6  21.0  19.4  27.0
AlI close end pants number add"B",AS:FPA2-04M-20B
