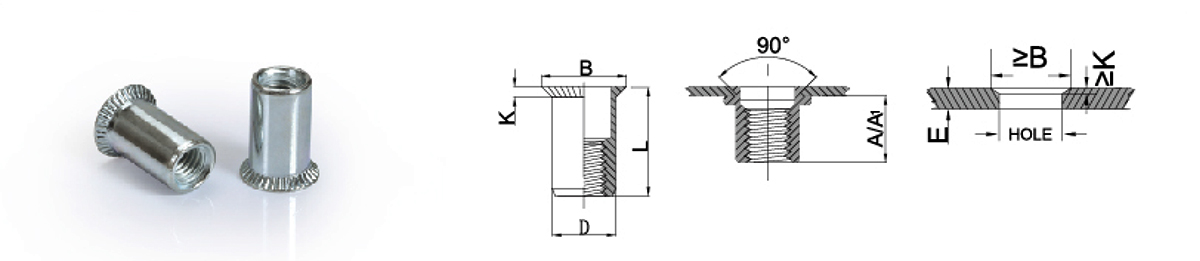

Countersunk Head Plain Body Steel

0
View: 1,663

Details:



UNIT:mm

C=Countersunk/P=Plain Body/S=Steel

Thread

Number
P/N

T(GRIP RANGE)
MIN MAX

A
Ref

Hole Size
+0.1
0

D
+0.07
-0.1

B
土 0.30

K
土0.15

L
土 0.30

M4

CPS-04M-35B

1.5-3.5

6.5

6.0

5.9

9.0

1.5

12.0

M5

CPS-05M-35B

1.5-3.5

7.5

7.0

6.9

10.0

1.5

13.0

M6

CPS-06M-40B

1.5-4.0

9.0

9.0

8.9

12.0

1.5

15.5

M8

CPS-08M-45B

2.0-4.5

10.5

11.0

10.9

14.0

1.5

18.5

M10

CPS-10M-50B

2.0-5.0

12.5

13.0

12.9

16.0

1.5

21.0
