Flat Head Square Body Steel

0
View: 34

Details:



UNIT:mm

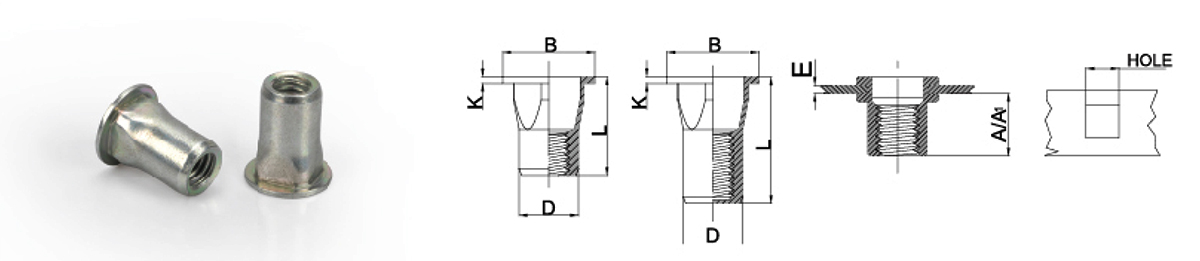

F=Flat/H=Halt hex/S=Steel

Thread

Number
P/N

T(GRIP RANGE)
MIN MAX

A
Ref

Hole Size
+0.1
0

D
+0.07
-0.1

B
土0.25(*土0.3)

K
土0.1(*土0.15)

L
土0.25(*土0.3)

M5



FSS-05M-15

0.5-1.5

8

7.0

6.9

10.5

0.6

11.2

FSS-05M-30

1.5-3.0

0.6

12.7

M6



FSS-06M-25

0.5-2.5

8.5

9.0

8.9

14.0*

0.8*

14.3

FSS-06M-40

2.5-4.0

9.5

0.8*

17.2*

M8

FSS-08M-30

1.0-3.0

11.5

11.0

10.9

17.5

1.3*

18.6*
