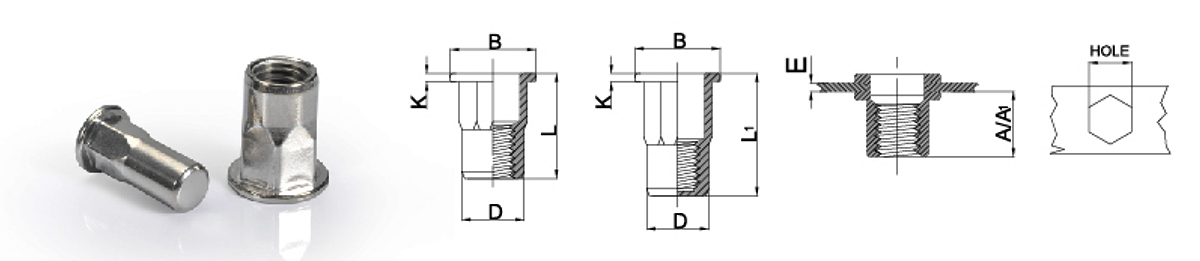

Flat Head Inner Half Hex Body Stainless Steel 1

0
View: 2,235

Details:



UNIT:mm F=Flat/H=lnner hex/A2=Stainless steel/B=Blind
Thread Number
P/N
T(GRIP RANGE)
MIN MAX
A
Ref
Hole Size
+0.1
0
D
+0.07
-0.1
B
土 0.30
K
土0.15
L
土 0.30
(CLOSE END)
A1 L1
M4 FIHA2-04M-20B 0.5-2.0 6.5  6.0  5.9  9.0  0.8  11.5  11.5  16.0
M5 FIHA2-05M-25B 0.5-2.5 7.2  7.0  6.9  10.0  1.0  13.5  13.5  18.5
M6 FIHA2-06M-30B 0.5-3.0 9.2  9.0  8.9  13.0  1.5  17.0  17.0  23.0
M8 FIHA2-08M-35B 1.0-3.5 11.5  11.0  10.9  16.0  1.5  18.0  18.0  25.0*
M10 FIHA2-10M-40B 1.0-4.0 12.8  13.0  12.9  18.0  1.7  21.0  21.0  33.0*
All close end pants number add "B", AS:FIHA-04M-20B
